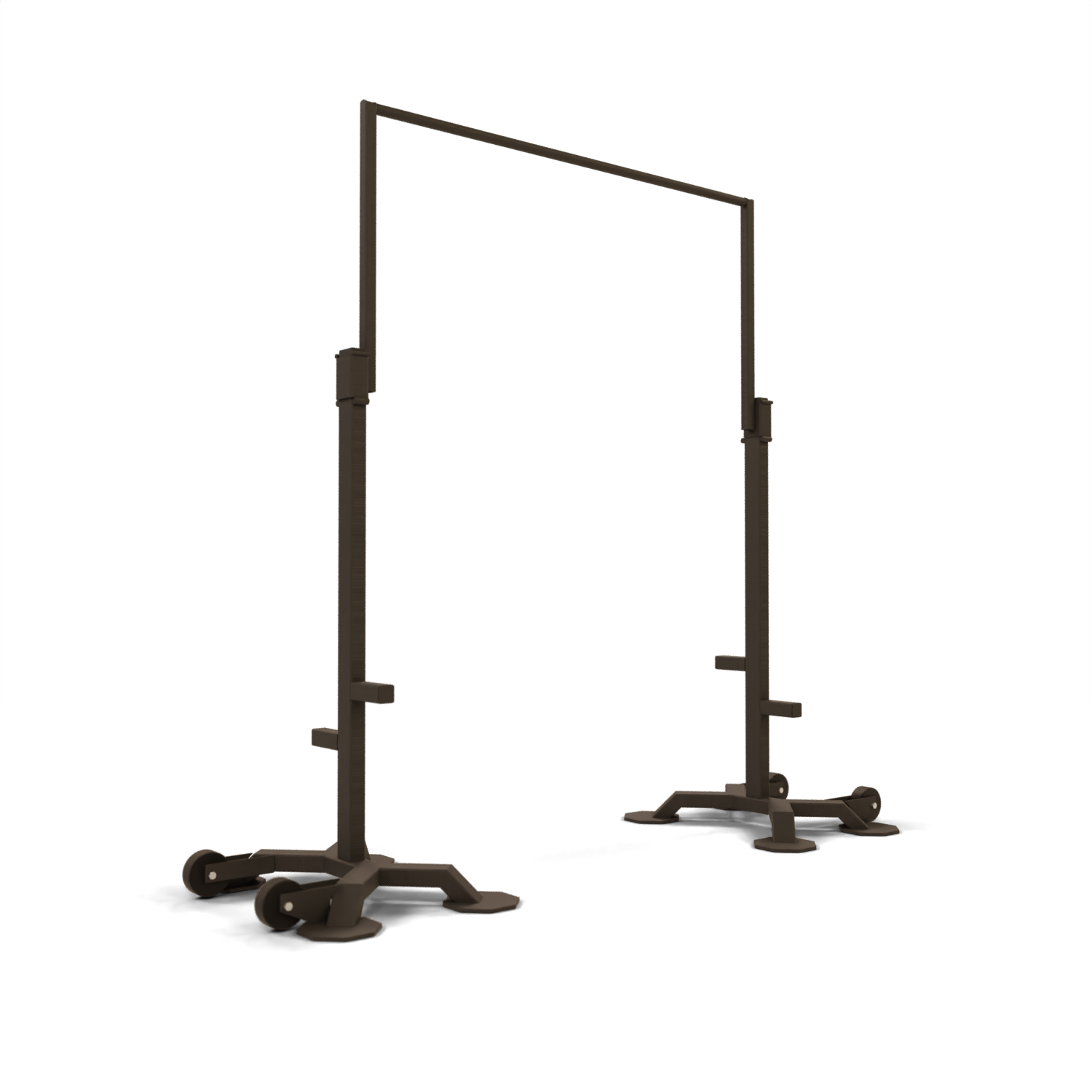

ACFT Portable Leg Tuck Station

Leg Tuck Bar Diameter: 1.25″ (3.18 cm)
Bar Material: DOM .250 wall x 1.25 with a Yield Strength of 75,000 lbs (34,019 kg)
Bar Finish: Textured Outdoor Black Wrinkle Powder Coat Paint for secure gripping
Leg Tuck Bar Length: 62 1/4″ (158.12 cm)
Bar Height: 90″ (228.6 cm) to the top of the bar
Standard Frame Color: Outdoor Black Wrinkle Powder Coat Paint (optional colors available)
Total System Weight: 153 lbs (69.4 kg)
Frame: 2” x 3” (5.08 cm x 7.62 cm) 11-gauge steel frame uprights
Steps: (1) 18″ (45.72 cm) and (1) 24″ (60.96 cm) from the ground
Bases: 2” x 3” (5.08 cm x 7.62 cm) 11-gauge steel
Wheels: (2) 5” (12.7 cm) O.D. x 2” (5.08 cm) wide polyolefin wheels on each base for easy mobility
Foot Plates: (4) large 8” x 3/8” (20.32 cm x 0.95 cm) thick plates welded to each base for support
Steel Tubes: Welded end caps to prevent moisture entry
Load Capacity: Over 1,000 lbs (453.6 kg)
