The Multi-Functional Pulley Unit is a space-saving machine that is available as a free standing, wall mounted, or rack mounted unit. The Multi Functional Pulley Unit features dual handles, a 600 lb. weight stack, 4:1 resistance ratio when 1 handle is used and a 2;1 resistance ration when both handles are used, 16 adjustment positions, chin and dip handles, and a T-bar ankle attachment. The combination of the chin/dip handles allows users to perform a resisted movement.
PL- Cables & Pulleys, PL- Machines, Power Lift

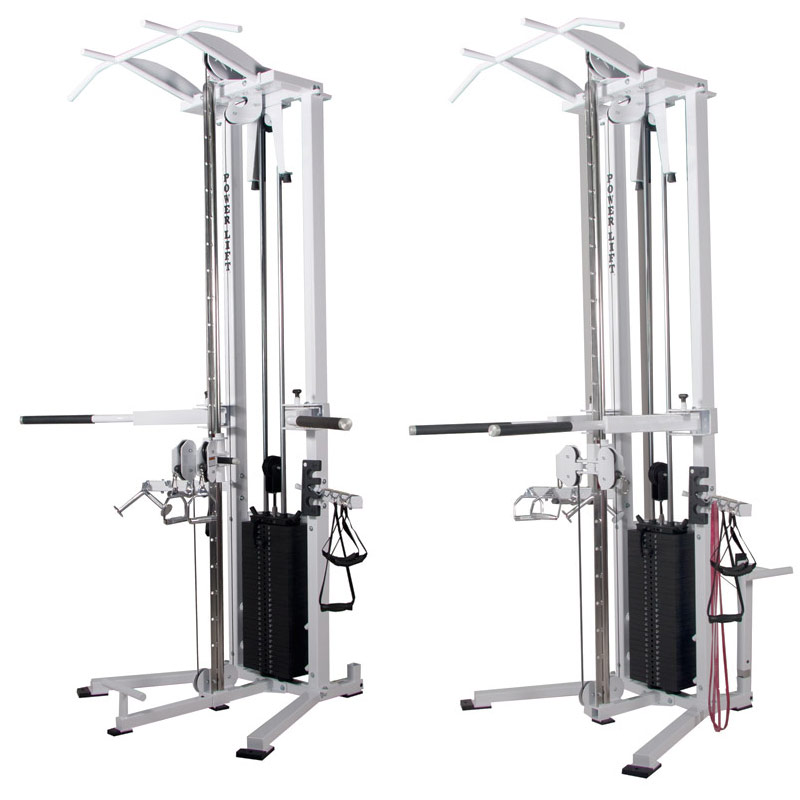

Multi-Functional Pulley Unit
Specifications:
- Length: 37″ (94 cm)
- Width: 21″ (53.3 cm)
- Height: 94″ (238.8 cm)
- Weight: 1,050 lbs (476.3 kg)
- Frame: 2″ x 2″ 11 gauge steel, 1 1/2″ x 1/2″ 11 gauge steel, and various flat steel sizes
- Dip Attachment Dimensions:
- Length: 36″ (91.4 cm)
- Width: 27 1/2″ (69.9 cm) – 20″ (50.8 cm)
- Height: 7 1/2″ (19.1 cm)
- Weight: 24 lbs (10.9 kg)
Features:

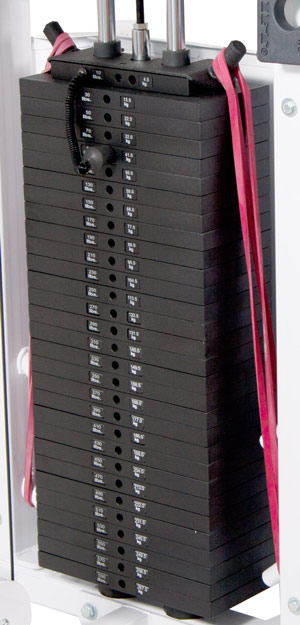

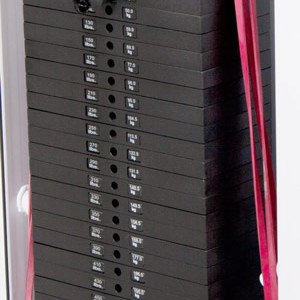

- 600 lb (272.2 kg) weight stack features 20 lb (9.1 kg) increments with a 5 lb (2.3 kg) add-on weight. Weight stacks are fully machined steel weight stacks with a powder coat finish.
- 3/16″ jacketed to 1/4″ Military Grade cables are used on all equipment
- 1″ solid chrome guide rods
- 7/16″ diameter weight selector pin locks in place and is connected to the weight stack to prevent loss
- Rubber bumpers under each weight stack to reduce vibration
- Top weight plate with free-floating bushings for smooth operation
- Steel weight stack guards
- Components are MIG .035 welded in jig fixtures ensuring consistent fabrication and tubes have welded end caps
- Standard handles include a 48” Lat pulldown, low row handle, and nylon strap handle
